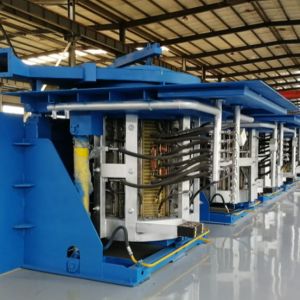

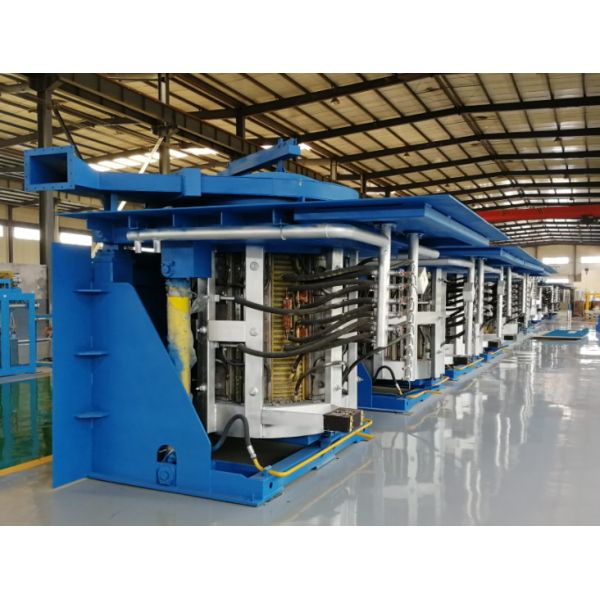

Intermediate Frequency Induction Steel Melting Furnace
The melting furnace mainly composed of power control cabinet and melting furnace body.
- The equipment can meet 24 hours of continuous work.
- It have self-test function and leaking alarm device.
- Real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information.
5t melting furnace technical parameter:
| Item | Parameter |
| General Parameter |
| | |
| Tilting method | Electric mechanical tilting |
| Tilting angle | ≧95 degree |
| Melting time | Approx 80-120min (for iron) |
| Furnace structure | Aluminium outer shell |
| Electronic Parameter |
| Rated power | 600KW |
| Rated Frequency | 1000HZ |
| Input voltage | 380V |
| Voltage for furnace body | 1500V |
| Cooling System |
| Input water pressure | 0.2-0.3Mpa |
| Input water temperature | 40℃ |
| Output water temperature | ≦55℃ |
| Cooling water consumption | 50M3/h |
Main scope of supply for one whoel set:
Induction Melting Furnace:
It has the bottom of the oxygen blowing, reducing carbon, slagging function.
Cyclone type smoke hood has excellent dust absorption , thermal insulation effect and take up a small space.
Long service life.
Power Supply:
The utility model has the advantages of obvious energy saving effect and 20% saving compared with common equipment.
It can achieve that one power supply cabinet for two furnaces.Transformer utilization rate is high.
The two furnaces can cast simultaneously and also can supply continuously molten steel casting.
Arbitrary power allocation, starting rate of 100%
Closed type cooling tower:
Heat exchanger:The materials of coil group is high quality of T2 depickling copper tube or stainless steel pipe .Set water tank and the tower body is made of aluminum zinc steel plate plate and the service life is over 15years.
Tilting Reducer:
The tilting reducer is equipped with three-stage turbine speed. With good self-locking and stable rotary performance.
Capacitor Bank :
The double-layer mica insulation technology is used for the insulation treatment of the capacitor.
Even if water is sprayed on the capacitor accidentally, the insulation strength of the cabinet can be ensured.
Technical Parameter
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
